GJL1311001R8105

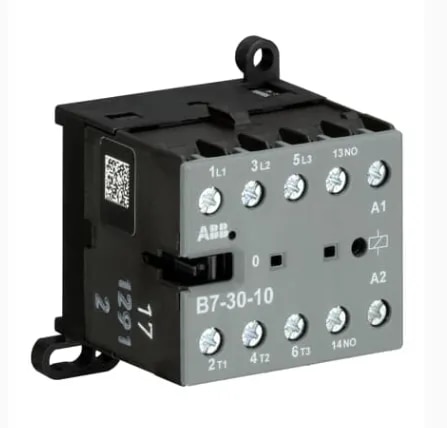

ABB GJL1311001R8105 – B7-30-10-85 Mini Contactor is a compact electromagnetic contactor designed for reliable switching and control of three-phase motors, single-phase loads, resistive loads and industrial control circuits. It incorporates 3 normally open main power contacts (3NO) together with 1 integrated auxiliary contact, making it suitable for motor starters, control signaling, holding circuits and interlocking applications. The contactor uses a 380–415 V AC control coil operating over 40–450 Hz and is equipped with screw terminals. ABB specifies an AC-3 operational current of 11.5 A at 380/400 V at 55°C, corresponding to a motor rating of 5.5 kW at 400 V. Under AC-1 duty, it is rated 20 A at 40°C, while its rated insulation voltage is 690 V.
