GJL1311001R8100

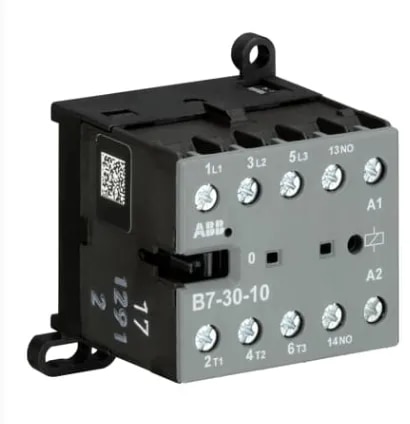

ABB GJL1311001R8100 – B7-30-10-80 Mini Contactor is a compact three-pole electromagnetic contactor intended for reliable switching and control of single-phase and three-phase motors, resistive loads and industrial control circuits. The contactor incorporates 3 normally open main power contacts (3NO) and 1 integrated normally open auxiliary contact (1NO) for signaling, holding, feedback or interlocking applications. It is equipped with a 220–240 V AC, 40–450 Hz control coil and screw terminals for secure panel wiring. ABB rates the B7-30-10-80 at 11.5 A AC-3 at 380/400 V and 55°C, with a corresponding three-phase motor rating of 5.5 kW at 400 V. Its conventional free-air thermal current is 20 A, and the main circuit can operate up to 690 V.
