GJL1211901R0101

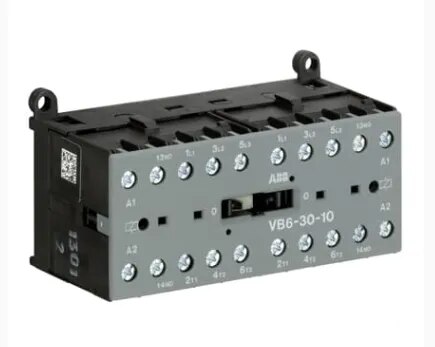

ABB GJL1211901R0101 – VB6-30-10-01 Mini Reversing Contactor is a compact reversing contactor assembly designed for forward/reverse control of three-phase motors in industrial, commercial, and building applications. The unit combines compact contactor switching with a mechanical interlock, preventing simultaneous operation of the forward and reverse contactors and providing reliable motor direction control. It operates with a 24 V AC control coil at 40–450 Hz and uses screw terminals for secure electrical connections. ABB specifies an AC-3 operational current of 9 A at 400 V, corresponding to a 4 kW three-phase motor rating at 400 V. For AC-1 applications, the contactor is rated up to 20 A at 40°C.
