GJL1211001R8100

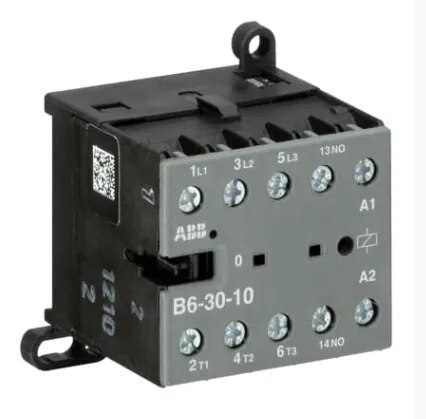

ABB GJL1211001R8100 – B6-30-10-80 Mini Contactor is a compact 3-pole electromagnetic contactor designed for reliable switching and control of single-phase and three-phase electrical loads. It incorporates 3 normally open main power contacts and 1 integrated normally open auxiliary contact, with screw terminals for convenient panel wiring. ABB specifies a 220–240 V AC control coil with a wide 40–450 Hz operating frequency range. The B6-30-10-80 is rated for an AC-3 operational current of 8.5 A at 380/400 V and can control motors up to 4 kW at 400 V. For AC-1 applications, it supports up to 20 A at 40°C, with a rated insulation voltage of 690 V.
