GJH1211001R8400

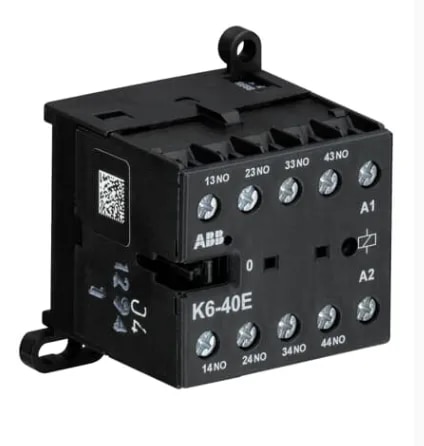

The ABB K6-40E-80 (GJH1211001R8400) is a compact 4-pole mini contactor relay equipped with 4 normally open (4NO) auxiliary contacts and screw terminals. It operates with a 220–240 V AC control coil over a 40–450 Hz frequency range. Designed for installations where panel space is limited while dependable control switching is required, the K6 series is suitable for residential, commercial, machine-control, and industrial automation applications. It can switch control signals up to approximately 3 A at 400 V AC under AC-15 utilization, while providing a conventional free-air thermal current rating of 6 A. Features include a quiet operating coil, visible switching-position indication, compact construction, and provision for both DIN-rail and wall/screw mounting.
