GJH1211001R0221

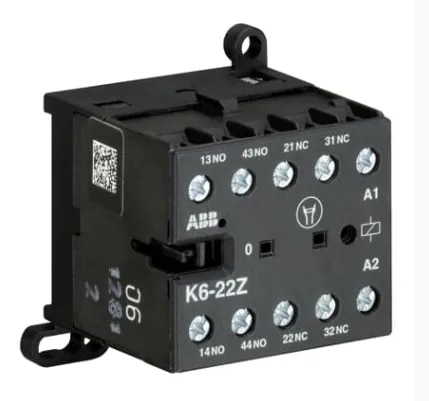

ABB GJH1211001R0221 – K6-22Z-01 Mini Contactor Relay is a compact four-pole electromagnetic control relay designed for reliable switching of control, signaling, interlocking and automation circuits. It has a 2NO + 2NC contact configuration, allowing it to perform multiple control functions within a small panel footprint. The relay operates with a 24 V AC control coil and uses screw terminals for secure wiring. ABB rates the auxiliary circuit at 6 A conventional free-air thermal current, with an AC-15 operational current of 3 A at 380/400 V and 4 A at 220/240 V. For DC-13 duty, ratings include 2.5 A at 24 V DC, 0.7 A at 110 V DC and 0.4 A at 220/240 V DC. Its rated insulation voltage is 690 V.
