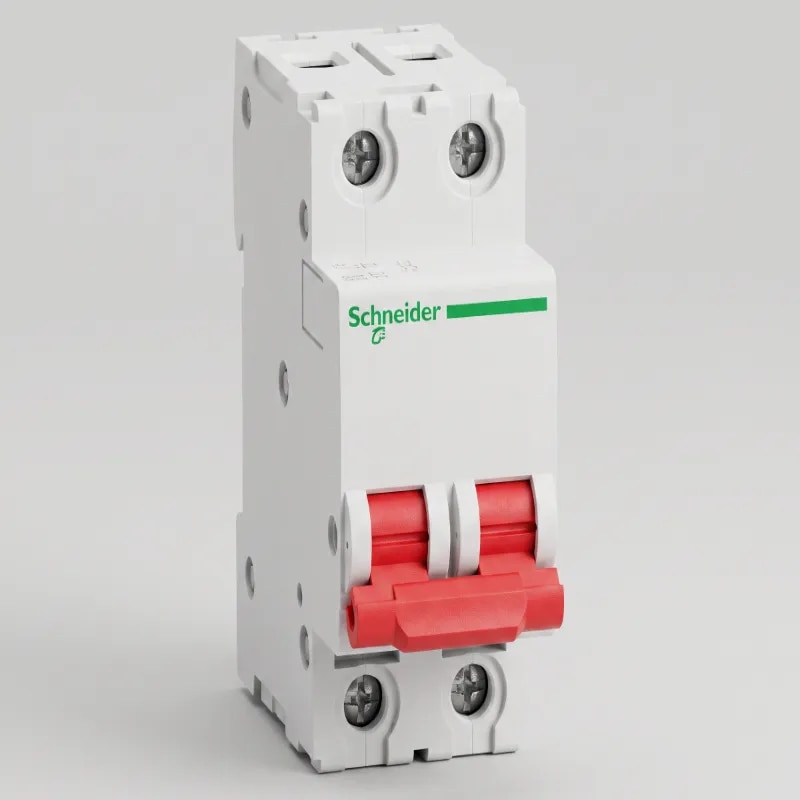

A9S2P040

This Acti9 xSW is a modular and reliable switch disconnector. it is a 2 poles, rated current is 40A, and operating voltage is 240VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Total number of 18 mm modules 2. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-1,EN/IEC 60947-3.
