82782

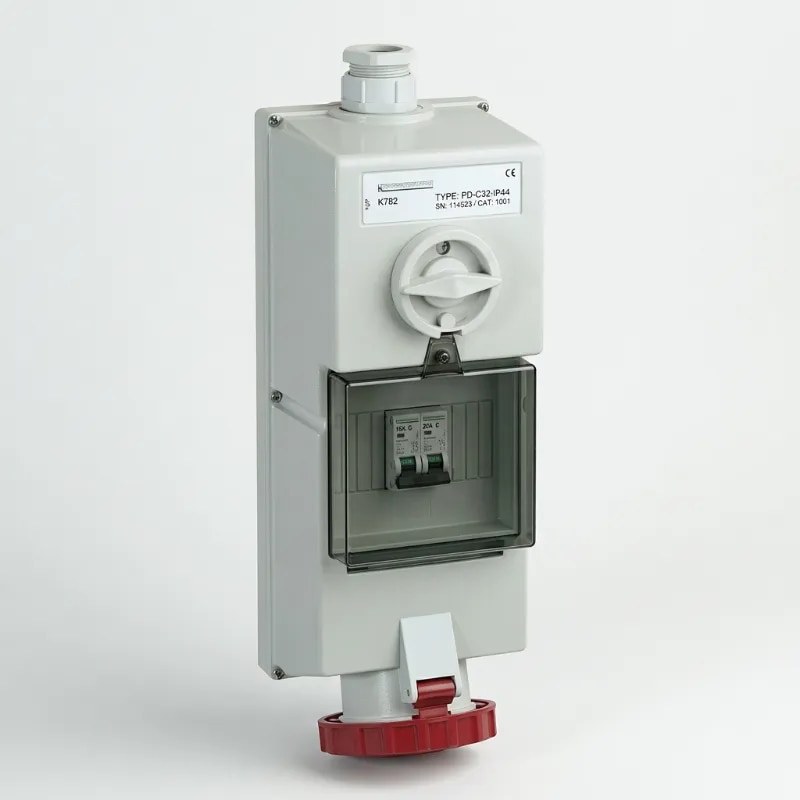

Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 63A is 25mm for 35mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 380-415VAC at 50/60Hz and its Ie rated operational current is 63A. This interlocked socket with captive screw connection is wall-mounted. The dimensions of the base plate are (W) 144mm x (H) 389mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind.
