2CSR275075R1324

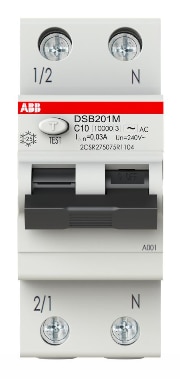

The ABB DSB201 M AC-C32/0.03 is a residual current circuit breaker with integrated overcurrent protection (RCBO), designed to protect compatible single-phase electrical circuits against earth-leakage currents, overloads and short circuits. It combines residual-current protection and miniature circuit-breaker functionality in one compact device.

With a rated current of 32 A, a rated residual operating current of 30 mA, a C-curve tripping characteristic and Type AC residual-current detection, the device is designed to detect sinusoidal alternating earth-leakage currents and interrupt overcurrent conditions. Its 1P+N configuration makes it suitable for compatible single-phase electrical distribution boards, with DIN-rail mounting for convenient installation.
