2CSR275075R1104

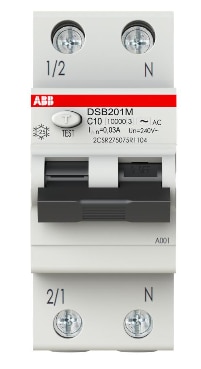

The ABB DSB201 M AC-C10/0.03 is a compact residual current circuit breaker with integrated overcurrent protection (RCBO), designed to protect single-phase electrical circuits against earth-leakage currents, overloads and short circuits. It combines residual-current protection and miniature circuit-breaker functionality in one device. With a rated current of 10 A, a residual operating current of 30 mA, a C-curve tripping characteristic and Type AC residual-current detection, it is suitable for compatible single-phase electrical distribution circuits. The device uses a 1P+N configuration and is designed for DIN-rail mounting.
