2CLA224100N1101

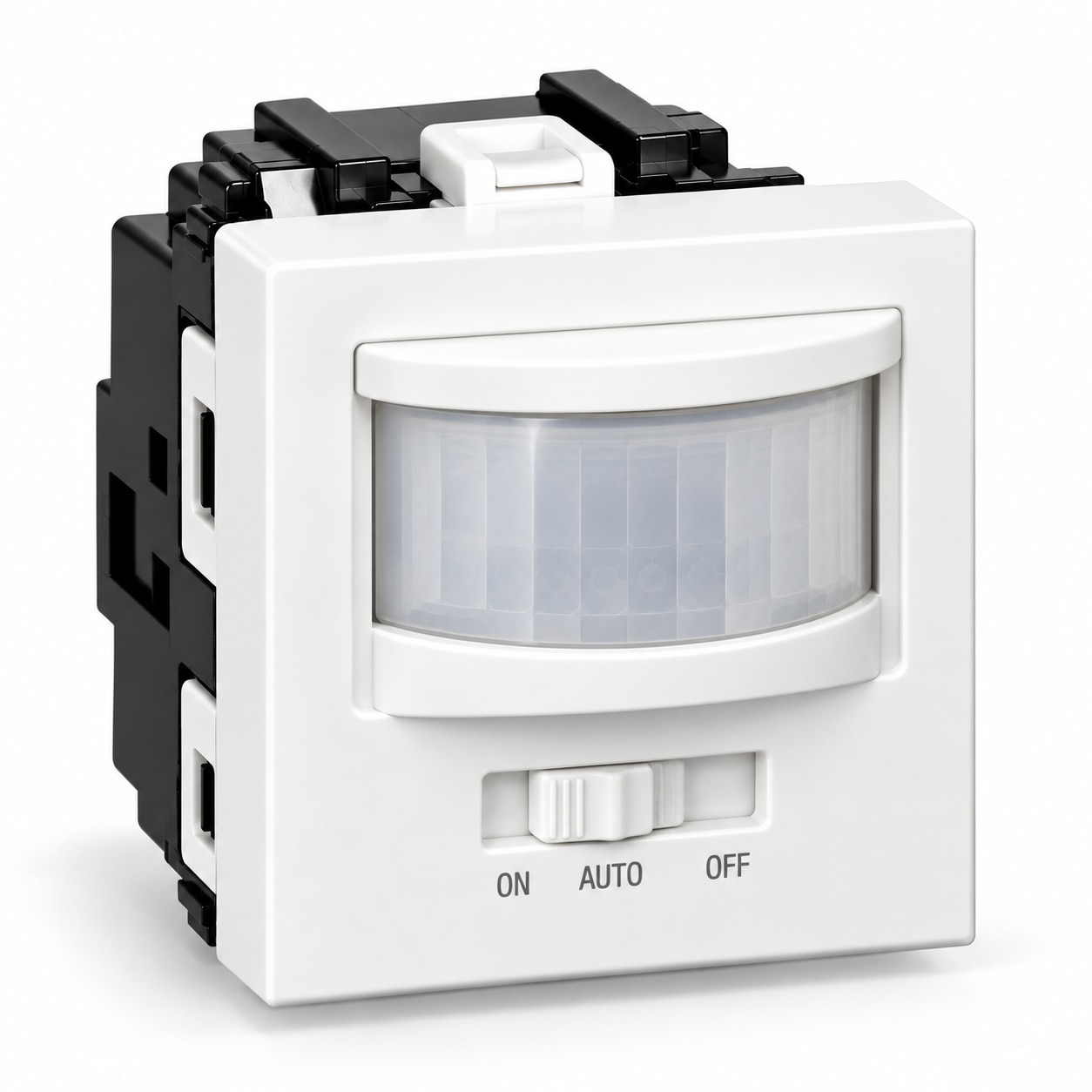

The ABB 2CLA224100N1101 N2241 BL Zenit 110° Motion Sensor is a high-quality electronic movement detection device designed for automatic control of lighting and compatible electrical equipment. Part of ABB's premium Zenit modular wiring accessories range, this motion sensor combines intelligent movement detection, adjustable lighting sensitivity and modern white styling for residential, commercial and hospitality electrical installations.

Equipped with a 110-degree detection angle and a sensing radius of approximately 5 meters, this sensor detects movement within its coverage area and activates connected devices according to the selected operating settings. The integrated brightness-dependent control allows the sensor to respond to movement when ambient lighting conditions meet the configured threshold.

The ABB Zenit N2241 BL features a front-mounted selector for ON, Automatic and OFF operation. It also offers an adjustable switch-off delay from 10 seconds to 10 minutes, along with a selectable short-time pulse function of approximately one second. These controls enable installers to configure the sensor for different automatic lighting and electrical switching applications.

Designed for a rated supply voltage of 127–230V AC at 50/60 Hz, the sensor incorporates a normally open, potential-free output contact. Its load capacity depends on the type of connected equipment, including incandescent lamps, halogen lighting, fluorescent lighting and compatible motors.

The compact two-module configuration allows the sensor to fit suitable ABB Zenit modular frames and flush-mounted electrical installations. Its white finish provides a clean, coordinated appearance alongside other ABB Zenit switches, sockets and electrical accessories.
