1SYS271012R0971

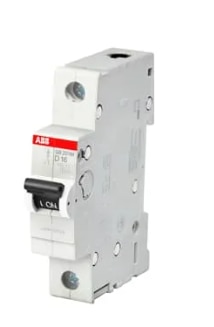

ABB SB201M-D1.6 (1SYS271012R0971) is a single-pole, 1.6 A miniature circuit breaker from the System pro M compact SB200M series. This current-limiting protective device uses a thermal tripping mechanism for overload protection and an electromagnetic tripping mechanism for short-circuit protection. It features a Type D tripping characteristic and a rated short-circuit breaking capacity of 10 kA. Designed for DIN-rail mounting and compliant with IS/IEC 60898-1, it is suitable for protecting selected electrical control and distribution circuits in residential, commercial and industrial installations. Proper selection should consider the connected load, inrush current, conductor rating and prospective fault current.
