1SYP011508C0001

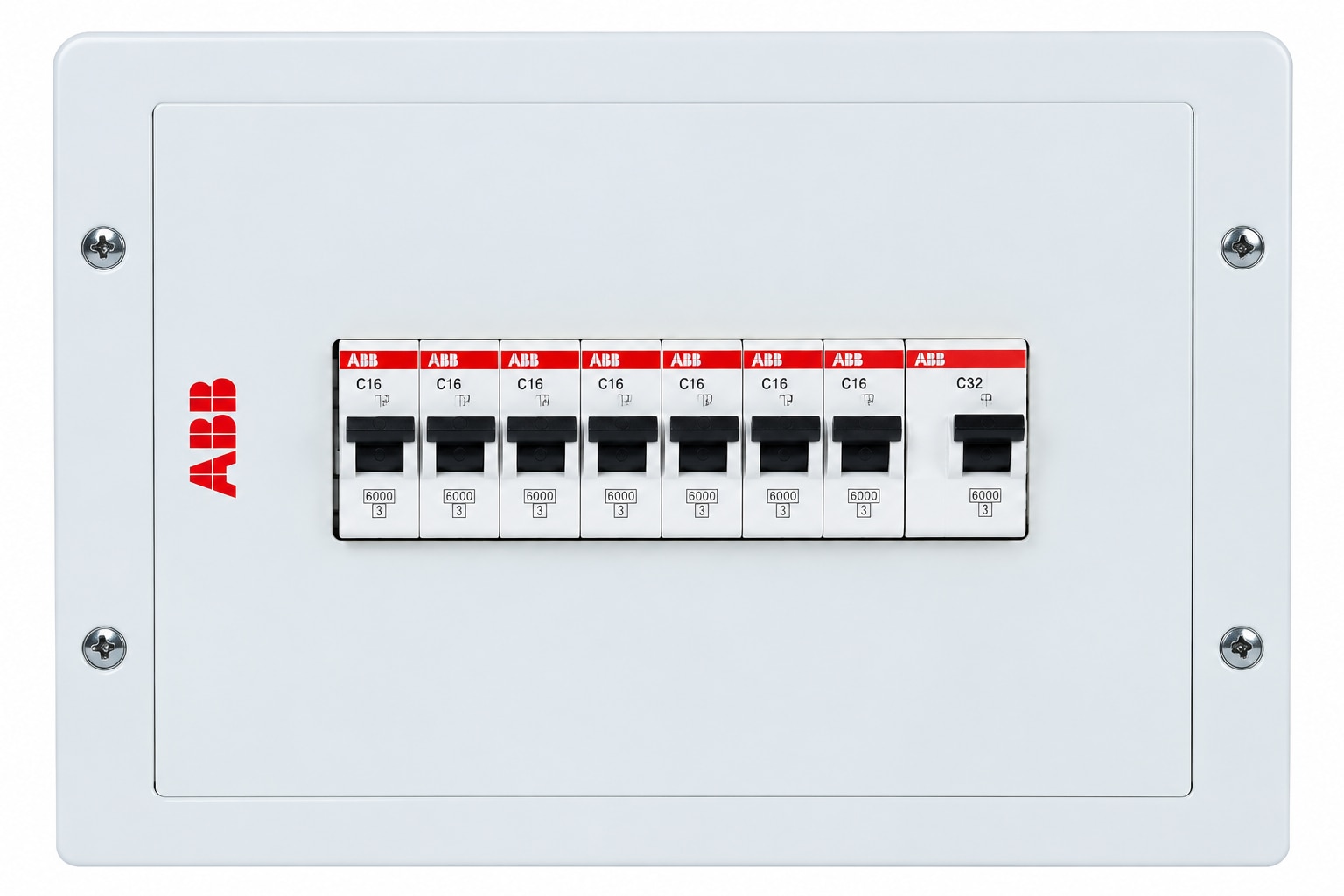

ABB ITUS IP-SPN08 WAY WD DB, product code 1SYP011508C0001, is an eight-way single-phase consumer distribution board designed for indoor electrical installations. It accommodates compatible modular protective devices, such as miniature circuit breakers (MCBs), and provides provision for a two-pole incoming device, including an MCB, isolator or residual-current device (RCD). The enclosure includes an earth link, shrouded neutral link, insulated tinned electrolytic copper busbar, and removable top and bottom gland plates with cable-entry knockouts. It supports flush or surface mounting and is suitable for organizing and distributing electrical circuits in residential and light-commercial applications. The enclosure is rated IP30 and IK08 and is supplied without a door.
