1SYN8690VMXT308

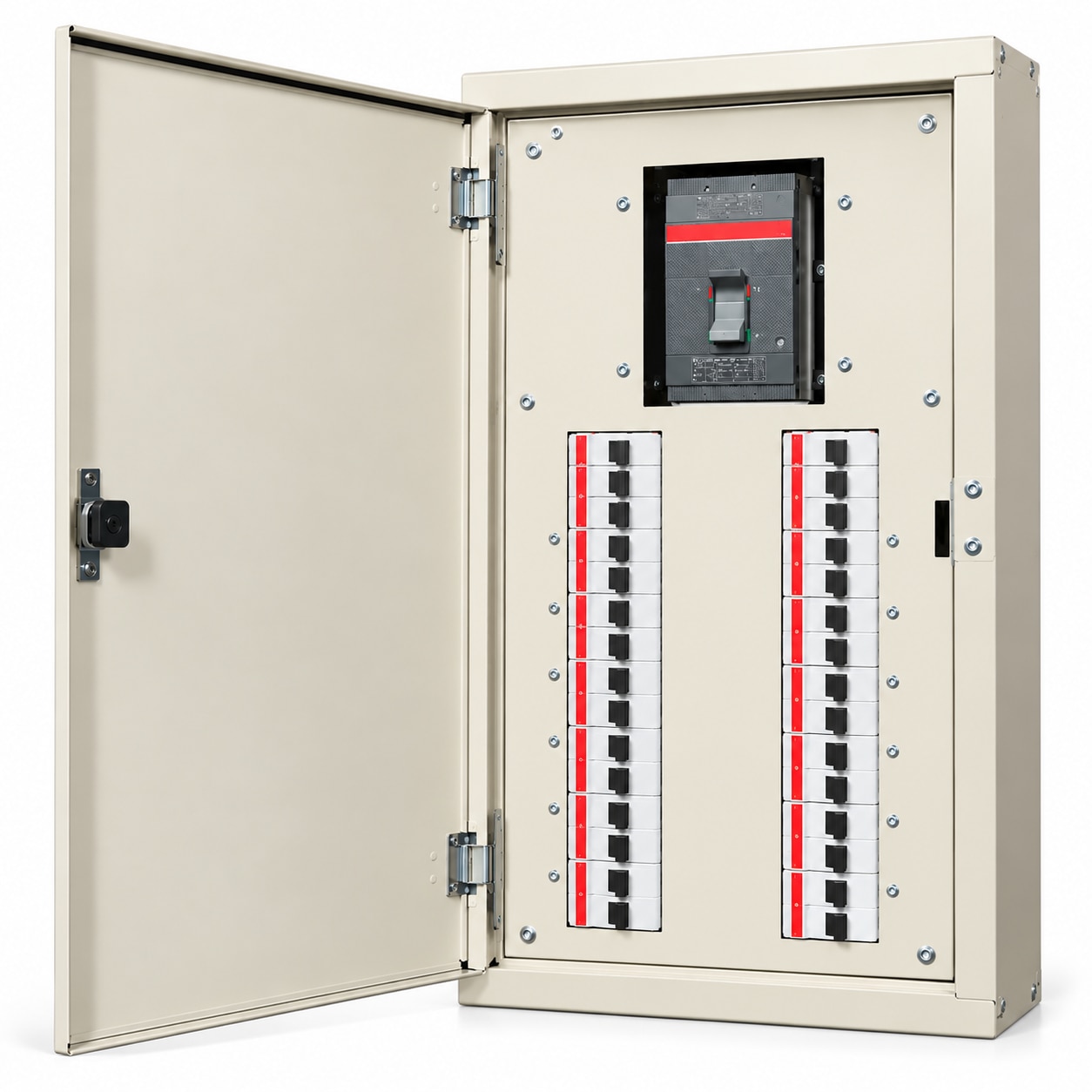

ABB 1SYN8690VMXT308 SVTDB M 8XT3 Vertical TPN Distribution Board, a premium-quality electrical distribution enclosure designed for reliable, organized and efficient three-phase power distribution across industrial, commercial and residential electrical installations.

Manufactured under the ABB Classic Series, this 8-way vertical TPN distribution board provides a dedicated arrangement for an ABB Tmax XT3 MCCB incomer rated up to 250A, along with outgoing single-pole and triple-pole miniature circuit breakers. Its Tmax XT3 + 24 module configuration provides flexibility for distributing electrical power across multiple circuits.

The distribution board features a durable IP43-rated metal-door enclosure, helping protect electrical components against solid objects and spraying water within its specified protection limits. Its vertical construction supports efficient use of panel space, organized circuit arrangements and convenient accessibility for inspection and maintenance.

The board is designed with provision for insulated busbar arrangements, supporting organized connections between incoming and outgoing protection devices. It is suitable for electrical contractors, panel builders, OEM manufacturers and commercial infrastructure projects.
