1SYN8690VMXT104

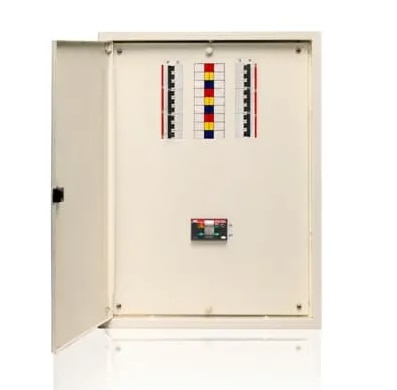

ABB 1SYN8690VMXT104 SVTDB M 4XT1 Vertical TPN Distribution Board, a durable and reliable electrical distribution enclosure designed for organized three-phase power distribution in industrial, commercial and residential electrical installations.

Manufactured under the ABB Classic Series, this 4-way vertical TPN distribution board is designed to accommodate a 160A ABB Tmax XT1 MCCB incomer along with outgoing single-pole or three-pole miniature circuit breakers. Its Tmax XT1 + 12 module configuration supports efficient distribution of electrical power to multiple circuits.

The distribution board features a robust metal-door enclosure with an IP43 protection rating, helping protect internal electrical components against solid objects and spraying water within the specified protection limits.

The vertical design helps optimize installation space and provides an organized arrangement for incoming and outgoing electrical protection devices. Its enclosure construction is suitable for use in distribution systems where accessibility, circuit organization and dependable operation are important.
