1SYN869061R0001

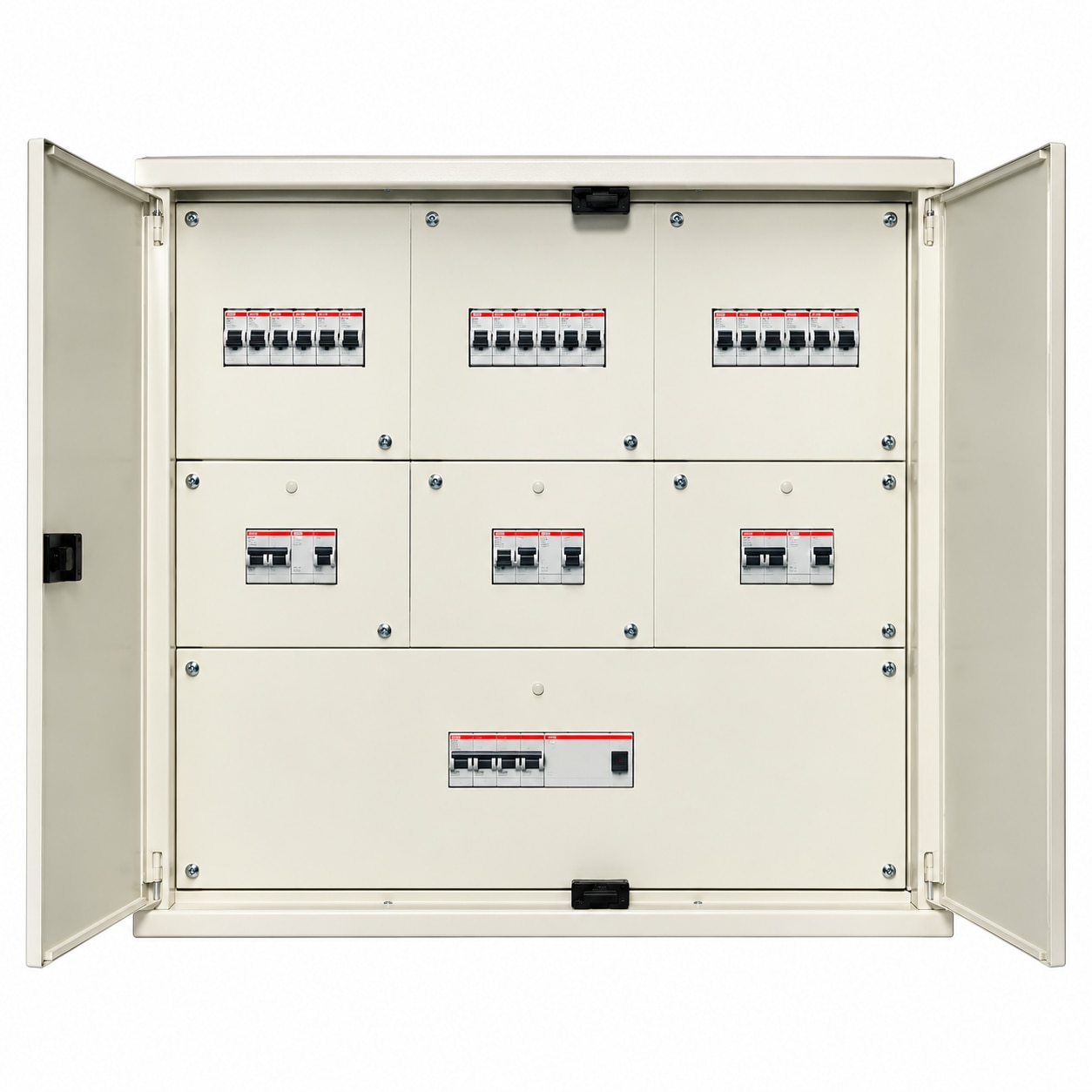

ABB 1SYN869061R0001 S7SEG M 12 Distribution Board, a high-quality electrical distribution enclosure designed for reliable, organized and efficient three-phase power distribution in industrial, commercial and residential electrical installations.

Manufactured under the ABB Classic Series, this 12 Way 7 Segment TPN Distribution Board features an 8+12+36 module configuration, providing dedicated space for incoming, sub-incoming and outgoing electrical protection devices.

The distribution board offers provision for an 8-pole incomer, including MCB, isolator or residual current device arrangements, along with 4-pole sub-incoming protection devices and single-phase outgoing circuits.

Its phase-segregated design helps organize distribution circuits and provides separation between incoming and outgoing sections. The IP43-rated metal-door enclosure offers protection against solid objects and spraying water within its specified protection limits.

The ABB S7SEG M 12 includes provisions for neutral bars, earthing links and wiring management. Removable top and bottom gland plates with cable-entry knockouts support convenient electrical installation. Surface and flush mounting options allow flexible installation.
