1SYN869058R0001

ABB 1SYN869058R0001 S7SEG M 4 Distribution Board, a high-quality 4 Way 7 Segment TPN Distribution Board designed for safe, reliable and organized electrical power distribution in industrial, commercial and residential installations.

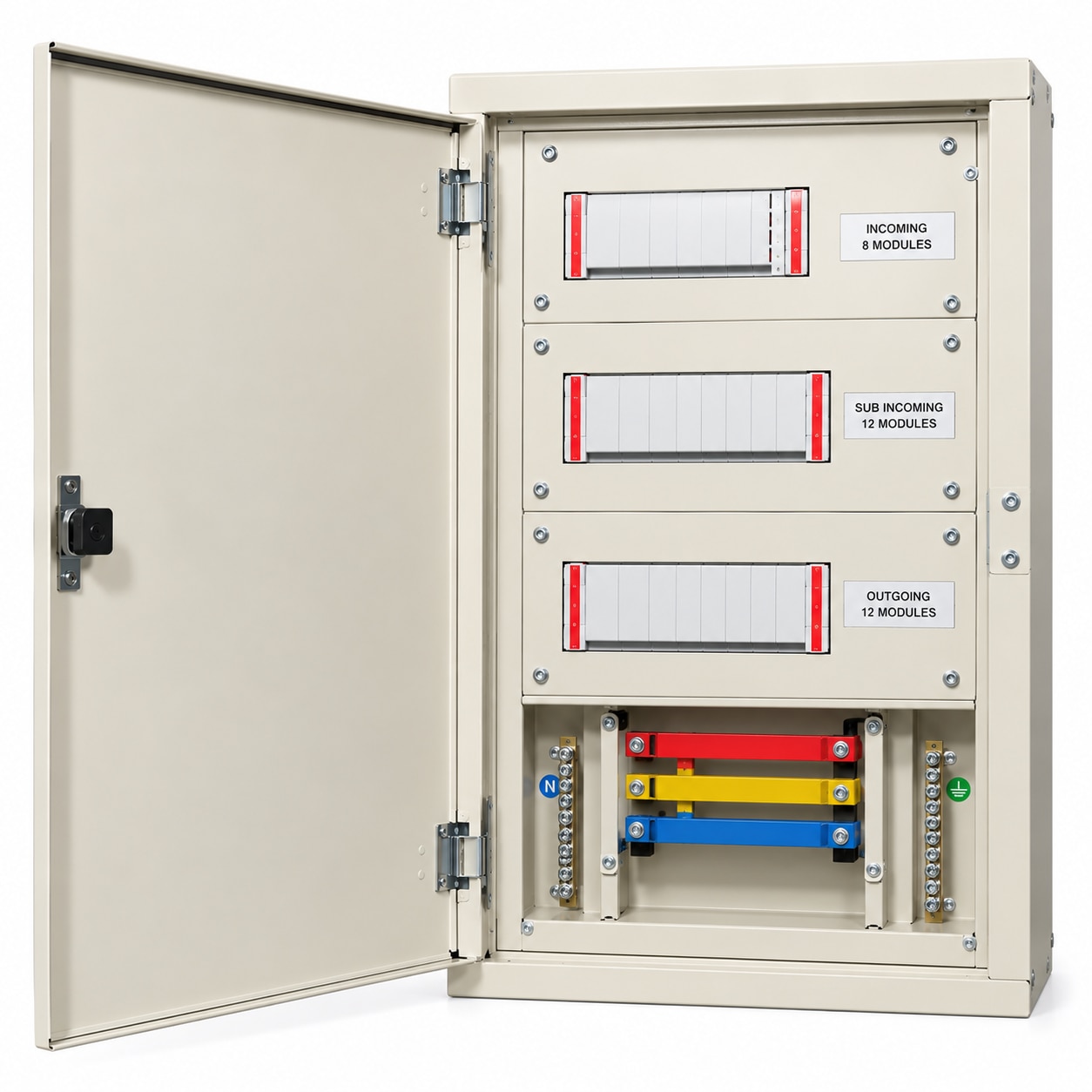

Manufactured under the ABB Classic Series, this distribution board features an 8+12+12 module configuration, providing dedicated space for incoming, sub-incoming and outgoing circuit protection devices. The arrangement supports phase segregation and separation of incoming and outgoing circuits, making it suitable for organized three-phase electrical distribution.

The enclosure features a durable metal door with an IP43 protection rating, helping protect the internal electrical installation against solid objects and spraying water within its specified protection limits.

The ABB S7SEG M 4 includes provisions for an 8-pole incomer, 4-pole sub-incomers and single-phase outgoing circuits. Its organized compartment arrangement facilitates circuit identification, wiring management, inspection and maintenance.

The distribution board is designed with neutral bars, earthing links and cable-management provisions. Removable top and bottom gland plates with knockouts support convenient cable entry.
