1SVR508160R0000

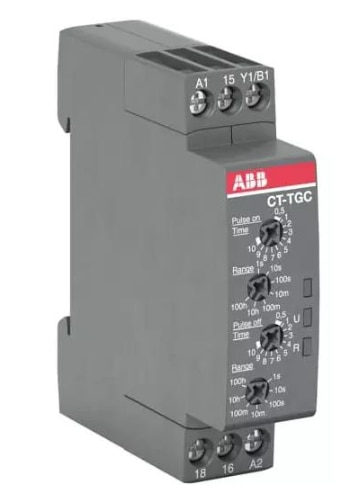

ABB CT-TGC.12 Pulse Generator Electronic Timer Relay, Part Number 1SVR508160R0000, a compact industrial timing and control device designed for automation systems, electrical control panels, motor control centers (MCC), and repetitive switching applications.

The ABB CT-TGC.12 belongs to ABB's CT-C series of electronic time relays and features a single pulse generator function with independently adjustable ON and OFF timing periods. This enables the relay to generate repetitive switching cycles with unequal ON and OFF durations, making it suitable for industrial processes that require precise cyclic control.

The relay provides two sets of seven selectable timing ranges covering 0.05 seconds to 100 hours, enabling users to configure operating intervals according to their application requirements.

It operates with a rated control supply voltage of 24–240V AC or 24–48V DC and incorporates one changeover (SPDT) output contact rated at 250V / 4A.
