1SFL547102R1400

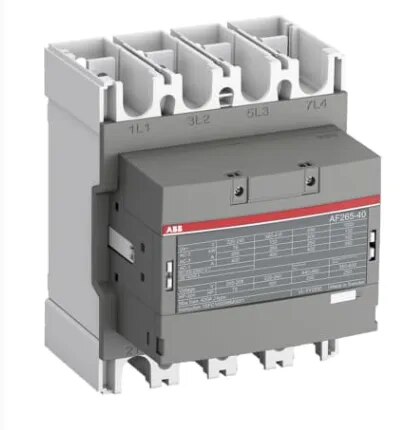

ABB 1SFL547102R1400 – AF265-40-00-14 is a heavy-duty 4-pole AF series power contactor designed for motor starting, isolation, bypass, distribution and high-current switching applications in industrial electrical systems.

The contactor features four normally open main poles (4NO) and provides an AC-3 rated operational current of 265 A at 380–440 V. It can control three-phase motors up to approximately 132 kW at 380–400 V and 160 kW at 440 V. For AC-1 applications, ABB specifies a rated operational current of 400 A at 690 V and 40°C.
