1SFL547102R1100

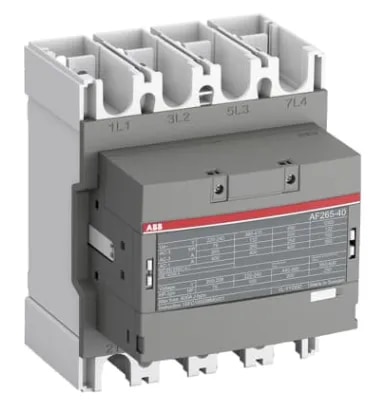

ABB 1SFL547102R1100 – AF265-40-00-11 is a heavy-duty 4-pole power contactor from ABB’s AF contactor range, designed for motor starting, isolation, bypass, power distribution and high-current industrial switching applications. The contactor is equipped with four normally open main poles (4NO) and has no factory-mounted auxiliary contacts.

The AF265 is rated at 265 A under AC-3 utilization duty at common industrial voltages. It is suitable for three-phase motors up to approximately 132 kW at 380–400 V and 160 kW at 440 V. For AC-1 applications involving resistive or slightly inductive loads, ABB specifies a rated operational current of up to 400 A at 690 V and 40°C ambient temperature.
