1SFL447102R1400

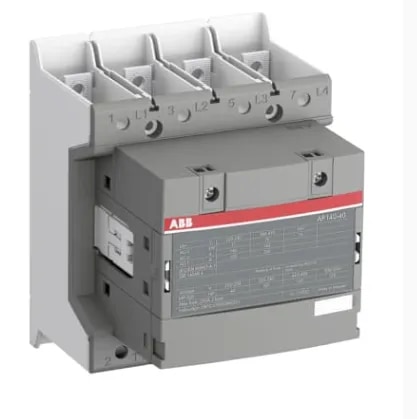

ABB AF140-40-00B-14 (1SFL447102R1400) is a heavy-duty 4-pole AF-series power contactor with 4 normally-open main contacts and high-current bar terminals. It is suitable for industrial motor control, isolation, bypass and power-distribution applications. The contactor is rated approximately 200 A AC-1 and 140 A AC-3 at 380/400 V, corresponding to a 75 kW motor rating at 400 V. Its electronic coil operates over a wide 250–500 V AC 50/60 Hz or DC control-voltage range and includes built-in surge suppression.
