1SDA116234R1

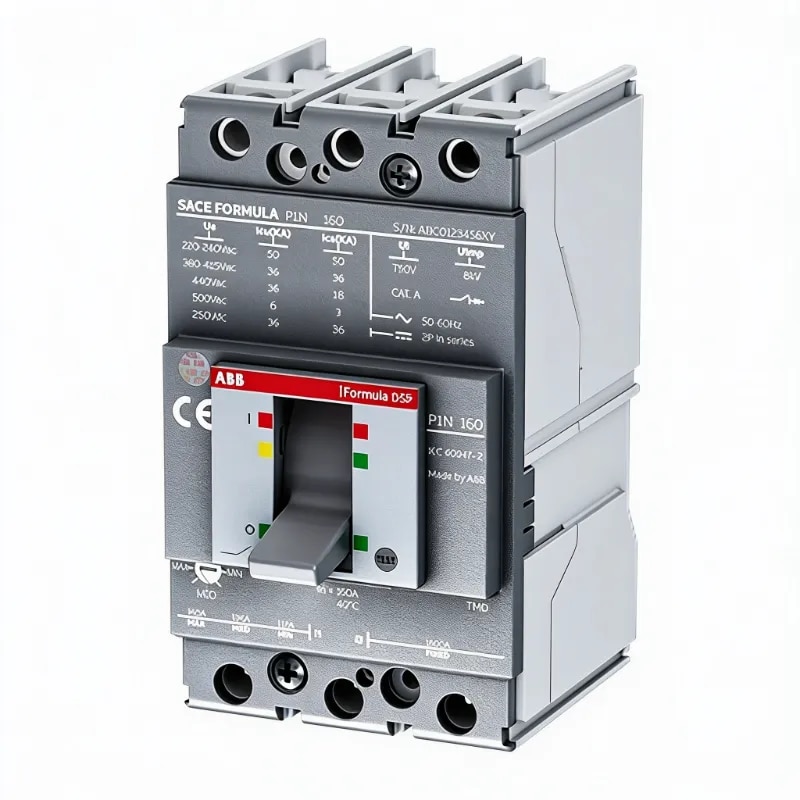

ABB 1SDA116234R1 Formula DSP P1C 160 TMD 80-800 3P F F is a 3-pole fixed Moulded Case Circuit Breaker (MCCB) designed for reliable circuit protection and switching in low-voltage electrical distribution systems.

The MCCB uses a thermomagnetic (TMD/TM) release to provide protection against overload and short-circuit conditions. Its fixed construction and front-terminal connection make it suitable for installation in electrical distribution panels, switchboards, industrial control panels and commercial electrical systems.

This particular model has an 80 A rated current, with a 56–80 A adjustable setting range, while the P1C frame provides a 160 A rated uninterrupted current. It supports a 500 V AC rated operational voltage, 750 V insulation voltage and 8 kV impulse withstand voltage. ABB lists a service short-circuit breaking capacity of 40 kA at 240 V AC for this model.
