1SDA100747R1

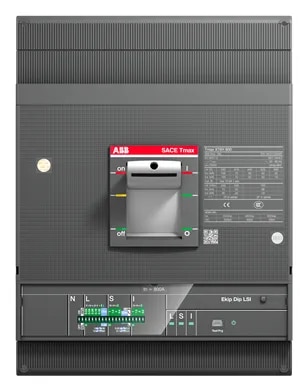

ABB SACE Tmax XT6S 800 moulded-case circuit breaker (MCCB), rated 800 A, 3-pole, fixed execution with front terminals and Ekip M Dip I electronic/solid-state release. The breaker is designed for transformer, generator, installation and motor protection in low-voltage AC systems. It has an S interruption rating and a rated short-circuit breaking capacity of 50 kA at 400 V AC. The unit supports a rated operational voltage of 690 V AC, with 1000 V insulation voltage and 8 kV impulse withstand voltage. Its Ekip M Dip I electronic protection unit provides adjustable short-circuit protection, making the breaker suitable for industrial switchboards and high-current power distribution applications.
