1SDA100365R1

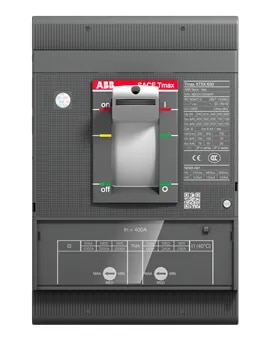

ABB SACE Tmax XT5N 400 moulded-case circuit breaker (MCCB), rated 400 A, 3-pole, fixed execution with front terminals and MA magnetic release. The instantaneous magnetic trip setting is adjustable from 2800 A to 5200 A. It is intended for low-voltage protection applications such as transformer, generator, motor and installation protection. The breaker has a 690 V rated operational voltage and 36 kA rated short-circuit breaking capacity at 400/415 V AC.
