1SDA100069R1

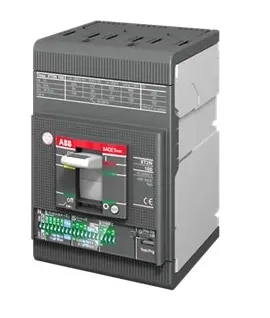

The ABB 1SDA100069R1 is a high-performance low-voltage molded-case circuit breaker from ABB's Tmax XT family, designed to provide reliable protection, isolation, and switching for electrical distribution systems. The breaker uses the XT2H 160 frame and is rated for a continuous current of 160 A.

The device features a 3-pole configuration and fixed installation design with front terminals, making it suitable for integration into distribution panels, switchboards, industrial control panels, and other low-voltage electrical assemblies. It is equipped with an Ekip Dip LSIG electronic trip unit, providing four protection functions: L – long-time overload, S – short-time, I – instantaneous short-circuit, and G – ground-fault protection.
