1SDA100014R1

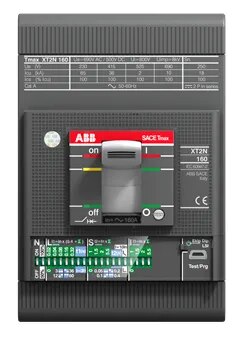

ABB SACE Tmax XT2N 160 molded case circuit breaker (MCCB), fixed three-pole configuration with front terminals and Ekip DIP LIG solid-state electronic release, rated at 160 A. It is designed for low-voltage AC power distribution and provides adjustable protection against long-time overload, instantaneous short-circuit and ground-fault conditions. The breaker has a 160 A rated uninterrupted current, 690 V AC operational voltage, 1000 V insulation voltage and 8 kV impulse withstand voltage. Its N interruption class provides up to 36 kA service short-circuit breaking capacity at 380–440 V AC, making it suitable for industrial and commercial distribution applications.
