1SDA100008R1

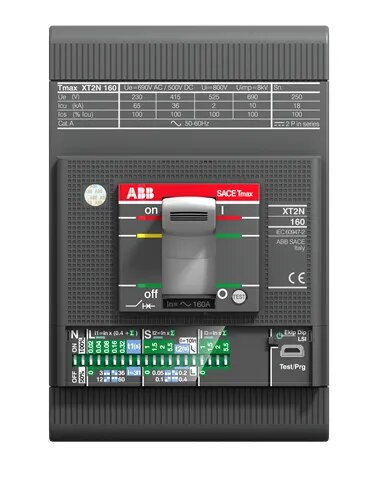

The ABB 1SDA100008R1 is a Tmax XT2N 160 molded-case circuit breaker (MCCB) designed for protection and control of low-voltage electrical distribution systems. It is a 3-pole, fixed-mount circuit breaker with front terminals, equipped with an Ekip Dip LSIG electronic trip unit rated at 100 A. The breaker belongs to ABB's Tmax XT family and provides electronic LSIG protection for different electrical fault conditions. The L (Long-time) function provides overload protection, S (Short-time) provides selective short-circuit protection, I (Instantaneous) provides rapid short-circuit protection, and G (Ground-fault) provides earth-fault protection.
