1SDA076535R1

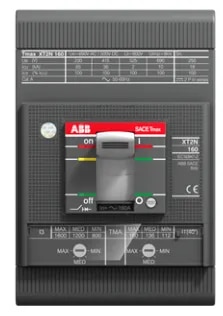

ABB SACE Tmax XT2H 160 moulded-case circuit breaker (MCCB), rated 160 A, 3-pole, fixed execution with front terminals and MA magnetic release. The breaker features an adjustable instantaneous magnetic trip range of 960–2240 A and is designed for short-circuit protection in low-voltage electrical installations. It is suitable for applications including power distribution, cables, generators and motors. The XT2H high-breaking-capacity version provides up to 70 kA short-circuit breaking capacity at 415 V AC. It is suitable for systems with a rated operational voltage of 690 V AC, making it appropriate for industrial switchboards and low-voltage distribution systems.
