1SDA068209R1

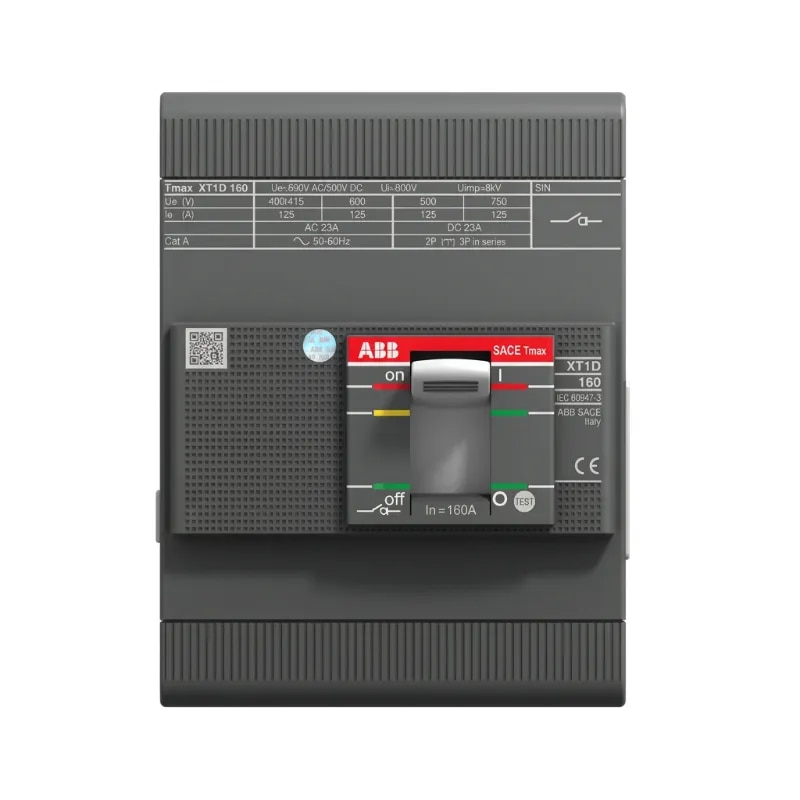

ABB SACE Tmax XT1D 160 Switch Disconnector (160A, 4-Pole, Fixed)

Ensure safe and reliable circuit isolation with the ABB SACE Tmax XT1D 160 Switch Disconnector. This 4-pole, fixed-mount device is rated at 160A and is designed specifically for isolating power circuits, providing a visible and secure break for maintenance and safety across all conductors, including the neutral.

Unlike a circuit breaker, this switch disconnector does not provide overcurrent protection. Its purpose is purely to disconnect the load from the supply. This makes it the ideal choice for use as a main switch, a maintenance isolation point, or a safety disconnect in industrial and commercial panels where full 4-pole isolation is required.

Built on the robust XT1D 160 frame, this device offers excellent durability with a mechanical lifespan of 25,000 cycles and an electrical lifespan of 8,000 cycles. It supports operational voltages up to 690 V AC and 500 V DC, making it versatile for a wide range of applications. With a rated short-time withstand current of 2 kA for 1 s, it can handle fault currents safely until an upstream protective device operates.

Designed and manufactured in Italy, it complies with IEC 60947-2 standards, ensuring high quality and reliability.
