1SDA068074R1

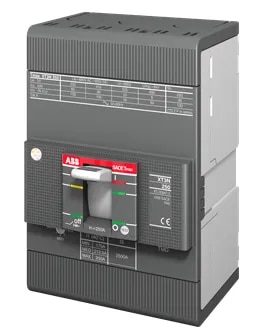

ABB SACE Tmax XT3N 250 moulded-case circuit breaker (MCCB), rated 200 A, 3-pole, fixed execution with front terminals and adjustable magnetic MA release. The instantaneous magnetic trip setting is adjustable from 1200 A to 2400 A. It is designed for low-voltage circuit protection and applications such as motor and power-distribution protection. The breaker has a 690 V AC rated operational voltage, 500 V DC capability, and a 36 kA short-circuit performance level.
