1SDA067863R1

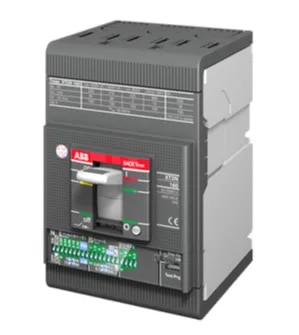

ABB SACE Tmax XT2H 160 moulded-case circuit breaker (MCCB), rated 25 A, 3-pole, fixed execution with front terminals and Ekip I electronic/solid-state release. The breaker is designed for transformer, generator, installation and motor protection in low-voltage electrical systems. It provides adjustable instantaneous short-circuit protection from 25 to 250 A (1–10 × In) and has a high short-circuit breaking capacity of 70 kA at 380/415 V AC. The breaker is suitable for systems up to 690 V AC, with 1000 V insulation voltage and 8 kV impulse withstand voltage.
