1SDA067774R1

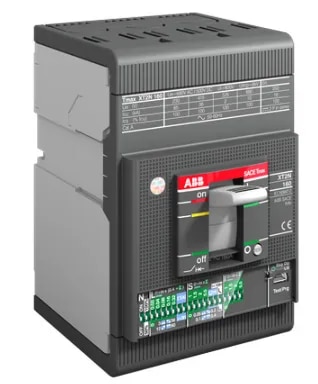

ABB SACE Tmax XT2H 160 moulded-case circuit breaker (MCCB), rated 12.5 A, 3-pole, fixed execution with front terminals and MF magnetic release. The breaker has a fixed magnetic trip setting of 175 A and is designed for reliable short-circuit protection in low-voltage electrical systems. Its XT2H high-breaking-capacity design provides a short-circuit breaking capacity of up to 70 kA at 380/415 V AC. The breaker is rated for 690 V AC / 500 V DC operational voltage, with 1000 V insulation voltage and 8 kV impulse withstand voltage. The fixed three-pole construction with front terminals makes it suitable for industrial switchboards, motor circuits and low-voltage distribution applications.
