1SDA067771R1

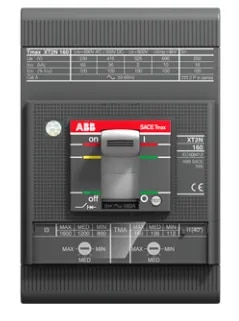

ABB SACE Tmax XT2H 160 moulded-case circuit breaker (MCCB), rated 2 A, 3-pole, fixed execution with front terminals and MF magnetic release. The breaker has a fixed instantaneous magnetic trip setting of 28 A (14 × In) and is designed for protection applications in low-voltage electrical systems, particularly motor circuits. The XT2H high-breaking-capacity series provides 70 kA short-circuit breaking capacity at 380/415 V AC, with a rated operational voltage of 690 V AC / 500 V DC and rated insulation voltage of 1000 V.
