1SDA067623R1

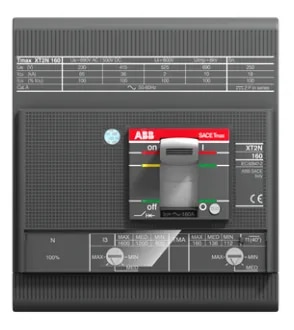

ABB 1SDA067623R1 is a SACE Tmax XT2H 160 molded case circuit breaker (MCCB) designed for reliable protection and switching in low-voltage electrical distribution systems. The unit is a 4-pole, fixed-mounted breaker with front terminals and a TMA thermomagnetic release. Its rated current is 100 A, with an adjustable thermal setting of 70–100 A and an instantaneous magnetic setting of 500–1000 A. The XT2H high-interruption design provides strong short-circuit protection, with a rated ultimate breaking capacity of 70 kA at 380/415 V AC and up to 100 kA at 220–240 V AC.
