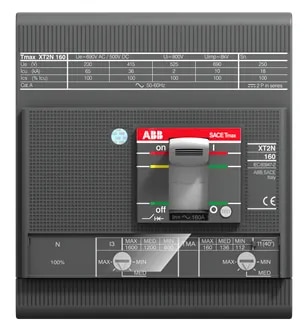

1SDA067622R1

ABB 1SDA067622R1 is a SACE Tmax XT2H series molded case circuit breaker (MCCB) designed to provide reliable protection, switching, and isolation in low-voltage electrical distribution systems. The breaker features an XT2H 160 frame, an 80 A rated current, four poles, fixed installation, front-terminal connections, and a TMA thermomagnetic release. The TMA release provides protection against electrical overloads and short-circuit faults. The thermal overload protection has an adjustable setting range of 56–80 A, while the instantaneous magnetic short-circuit protection is adjustable from 400–800 A.
