1SDA067541R1

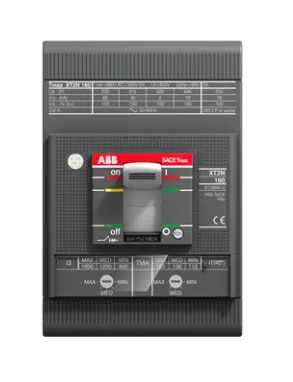

ABB SACE Tmax XT2S 160 moulded-case circuit breaker, fixed three-pole configuration with front terminals and thermomagnetic TMD release, rated current 2 A, adjustable thermal protection range 1.4–2 A, rated operational voltage up to 690 V AC / 500 V DC, rated insulation voltage 1000 V, impulse withstand voltage 8 kV, with high short-circuit breaking capability up to 85 kA depending on operating voltage, designed in accordance with IEC standards for reliable overload and short-circuit protection in low-voltage electrical distribution systems.
