1SDA067398R1

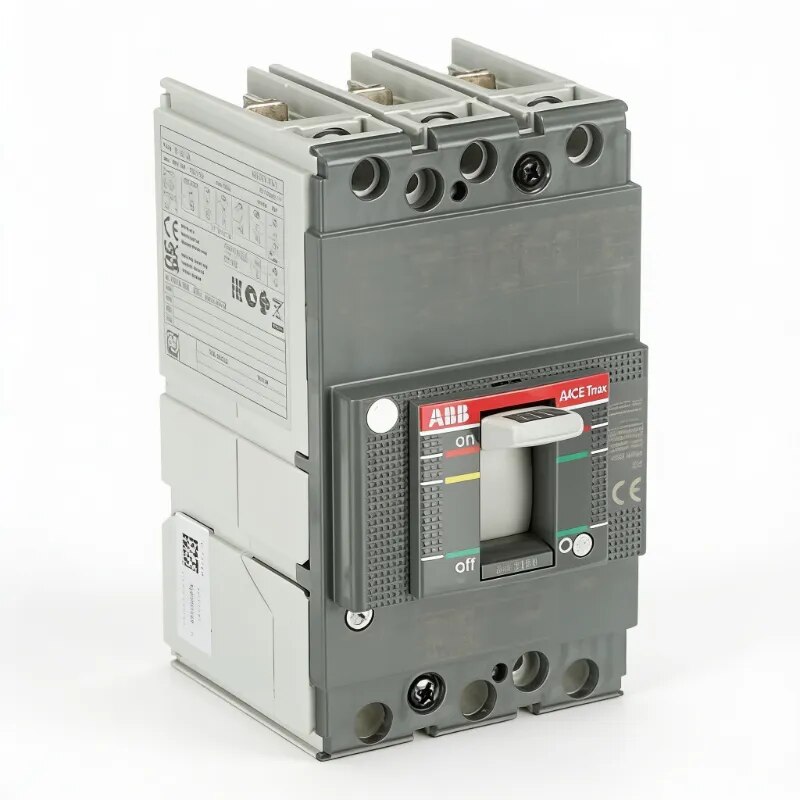

ABB SACE Tmax XT1C 160 3-Pole Molded Case Circuit Breaker (125A)

Ensure reliable power distribution and superior system protection with the ABB SACE Tmax XT1C 160. This 3-pole Molded Case Circuit Breaker (MCCB) is rated at 125A and features a thermomagnetic release (TMD) designed to safeguard three-phase industrial and commercial equipment against dangerous overloads and short circuits.

Built on a robust 160A frame, this unit offers versatile performance with a rated operational voltage of up to 690V AC and 500V DC. It provides a high ultimate breaking capacity of 25kA at 415V AC, ensuring your circuits remain safe even during severe fault conditions. The breaker features an adjustable thermal range (87.5 - 125 A) and a fixed instantaneous short-circuit setting of 1250 A, providing precise and reliable protection.

Engineered for longevity in demanding environments, it delivers a mechanical lifespan of 25,000 cycles and an electrical lifespan of 8,000 cycles. With front bolt terminals designed for busbars ranging from 45.5 to 80 mm², installation is secure, straightforward, and space-efficient.
