1SDA067093R1

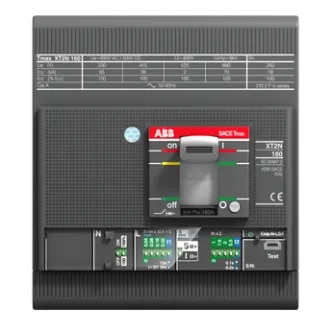

ABB SACE Tmax XT2N 160 molded case circuit breaker (MCCB), fixed four-pole configuration with front terminals and solid-state electronic Ekip DIP LS/I release, rated at 100 A. The circuit breaker is designed for AC low-voltage power distribution and provides reliable electronic protection against overload and short-circuit conditions. It has a 160 A frame size, 690 V rated voltage, 1000 V insulation voltage and 8 kV impulse withstand voltage. The N interruption-rated breaker provides up to 36 kA service short-circuit breaking capacity at 380–440 V AC, making it suitable for reliable protection of industrial and commercial electrical distribution systems.
