1SDA067092R1

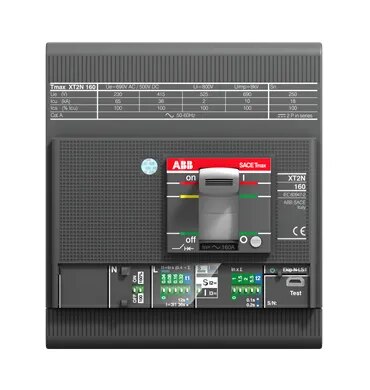

ABB SACE Tmax XT2N 160 molded case circuit breaker (MCCB), fixed four-pole configuration with front terminals and Ekip DIP LS/I solid-state electronic trip unit, rated at 63 A. The circuit breaker is designed for low-voltage AC power-distribution applications and provides reliable electronic protection against overload and short-circuit conditions. It features a 160 A frame size, 690 V rated operational voltage, 1000 V insulation voltage and 8 kV impulse withstand voltage. The XT2N 160 has an N interruption rating and provides up to 36 kA service short-circuit breaking capacity at 380–440 V AC.
