1SDA067059R1

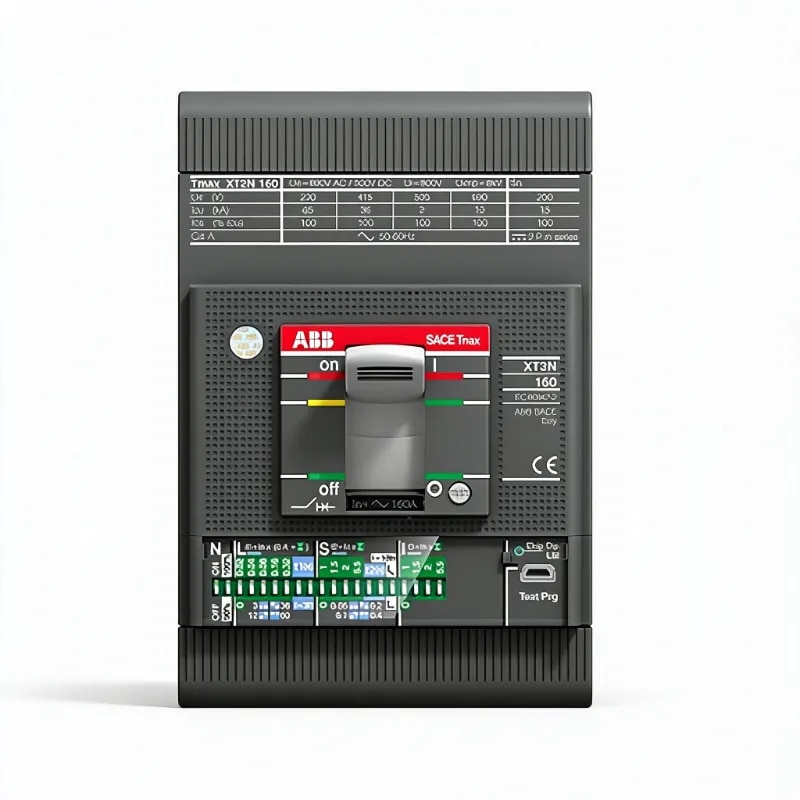

ABB SACE Tmax XT2N 160 Ekip M Dip I Circuit Breaker (10A, 3-Pole, Instantaneous Protection)

Ensure precise short-circuit protection for your sensitive equipment with the ABB SACE Tmax XT2N 160 Ekip M Dip I. This 3-pole Molded Case Circuit Breaker (MCCB) is rated at 10A and features an Ekip M Dip I electronic trip unit, providing instantaneous (short-circuit) protection only—ideal for applications where overload protection is handled separately.

Unlike standard breakers, the Ekip M Dip I trip unit focuses purely on magnetic (short-circuit) protection, allowing for precise coordination with upstream and downstream devices. This makes it an ideal choice for protecting control circuits, instrumentation, and sensitive electronic equipment in demanding commercial and industrial environments.

Built on the robust XT2N 160 frame, this breaker provides a high breaking capacity with an 65 kA service breaking capacity (Ics) at 220/230/240 V AC. It offers excellent versatility with a rated operational voltage of up to 690V AC, making it a reliable choice for modern power distribution systems.

Engineered for longevity, it delivers a mechanical lifespan of 25,000 cycles and an electrical lifespan of 8,000 cycles. With front bolt terminals designed for busbars 32.5 to 100 mm², installation is secure, straightforward, and space-efficient. The 3-pole configuration is ideal for standard three-phase loads. With an extremely low power loss of 0.1 W per pole, it is also highly energy-efficient.
