1SDA067055R1

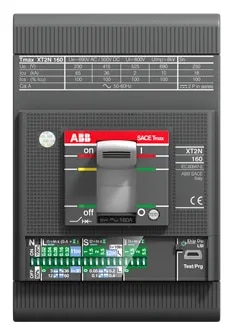

ABB SACE Tmax XT2N 160 molded case circuit breaker (MCCB), fixed three-pole configuration with front terminals and solid-state electronic Ekip DIP LS/I trip unit, rated at 25 A. The circuit breaker is designed for AC low-voltage power distribution and provides reliable electronic protection against overload and short-circuit conditions. It features a 160 A frame size, 690 V rated voltage, 1000 V insulation voltage and an N interruption rating, with a service short-circuit breaking capacity of up to 36 kA at 380/415 V AC. The fixed front-terminal configuration provides a compact and dependable solution for electrical distribution, transformer, generator and installation protection applications.
