1SDA067045R1

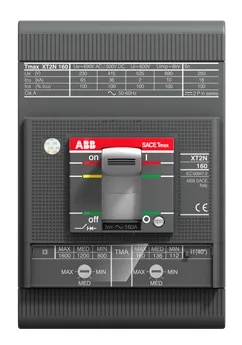

ABB SACE Tmax XT2N 160 MCCB, 2 A, 3-pole, fixed type with front terminals and magnetic MF release, instantaneous magnetic trip setting Im = 28 A. The circuit breaker is designed for low-voltage electrical protection applications and provides magnetic short-circuit protection. It has a rated operational voltage of 690 V AC / 500 V DC and a 36 kA short-circuit breaking capacity at 380/415 V AC. The compact XT2N construction is suitable for electrical distribution and panel applications where a low-current magnetic protection device is required.
