1SDA067044R1

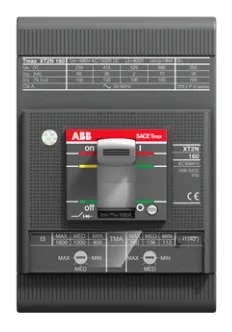

ABB SACE Tmax XT2N 160 MCCB, 1 A, 3-pole, fixed mounting with front terminals and fixed magnetic release (MF), with magnetic trip setting Im = 14 A. This moulded-case circuit breaker is intended for low-voltage electrical protection applications where magnetic short-circuit protection is required. The XT2N frame has a 36 kA Icu at 380/415 V AC and is rated for operation up to 690 V AC. ABB documentation identifies this ordering code within the Tmax motor/distribution circuit-breaker range with magnetic-only protection.
