1SDA067023R1

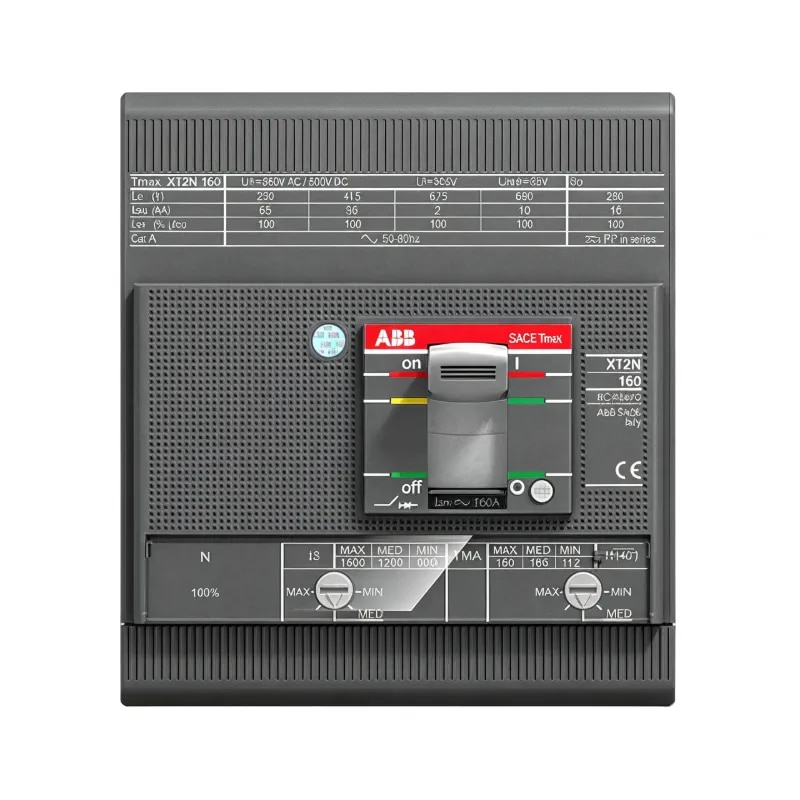

ABB SACE Tmax XT2N 160 4-Pole Molded Case Circuit Breaker (2.5A - 25A)

Ensure precise protection for your sensitive equipment with the ABB SACE Tmax XT2N 160. This 4-pole Molded Case Circuit Breaker (MCCB) is rated at 2.5A and features a highly reliable thermomagnetic release (TMD) for precise overload and short-circuit protection, with a fixed magnetic trip at 25A.

Built on the robust XT2N frame, this breaker provides a reliable breaking capacity for standard commercial and light industrial power distribution systems. It offers excellent versatility with a rated operational voltage of up to 690V AC and 500V DC, making it an ideal choice for protecting control circuits, small transformers, and sensitive sub-distribution panels.

Engineered for longevity, it delivers a mechanical lifespan of 25,000 cycles and an electrical lifespan of 8,000 cycles. With front bolt terminals designed for busbars ranging from 32.5 to 100 mm², installation is secure, straightforward, and space-efficient. The 4-pole configuration ensures full neutral protection.
