1SDA066809R1

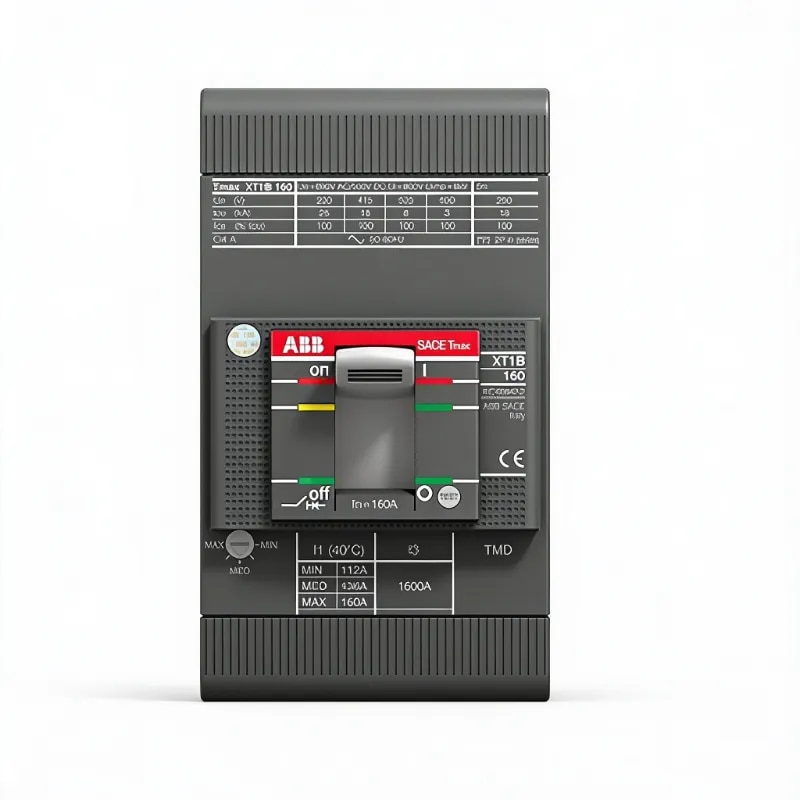

ABB SACE Tmax XT1B MCCB – XT1B 160 TMD 160-1600 3P F F

Product ID: 1SDA066809R1

Type: SACE Tmax XT1B molded case circuit breaker

Frame Size: 160A (Maximum rated current)

Rated Current (In): 160A

Trip Unit: Thermal-magnetic (TMD) with adjustable thermal setting (112-160A) and fixed magnetic trip (1600A)

Breaking Capacity (Icu): 25 kA at 240V AC / 18 kA at 415V AC

Poles: 3

Design: Fixed version with front terminals

Voltage Rating: 690V AC operational / 800V insulation / 500V DC

Power Loss: 15W per pole (highest in series)

Opening Time: 30ms (with SOR/UVR)

Standards: IEC 60947-2

Durability: 25,000 mechanical cycles / 8,000 electrical cycles

Application: Ultimate protection for large feeders, motor circuits, and industrial switchboards
