1SDA066777R1

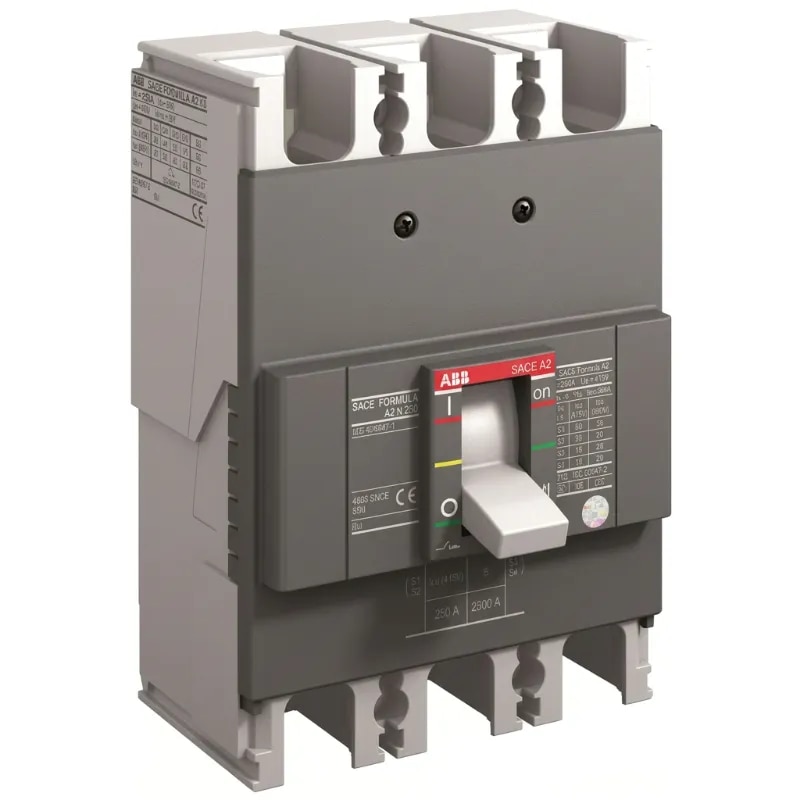

ABB SACE Formula A2C 250 TMF 175-1750 Circuit Breaker (175A, 3-Pole)

Ensure precise protection for your equipment with the ABB SACE Formula A2C 250. This 3-pole Molded Case Circuit Breaker (MCCB) is rated at 175A and features a highly reliable thermomagnetic release (TMF) for precise overload and short-circuit protection, with a fixed magnetic trip at 1750A.

Built on the robust A2C 250 frame, this breaker provides a high breaking capacity with a 25 kA service breaking capacity (Ics) at 240 V AC and 12.5 kA at 380 V AC. It offers excellent versatility with a rated operational voltage of up to 550V AC and 250V DC, making it an ideal choice for protecting motors, transformers, and distribution panels where high inrush currents and higher fault levels are expected.

Engineered for longevity, it delivers a mechanical lifespan of 10,000 cycles and an electrical lifespan of 4,000 cycles. With front bolt terminals, installation is secure, straightforward, and space-efficient. The 3-pole configuration is ideal for standard three-phase loads. With a low power loss of 10 W per pole, it is also highly energy-efficient.
