1SCA162748R1001

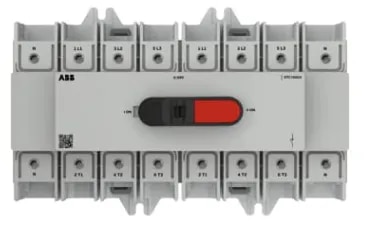

ABB OTC100G3-4BS – Part No. 1SCA162748R1001 is a 100 Amp, 4 Pole manual change-over switch from ABB’s OT Plus range. It is designed for manually transferring an electrical load between two independent incoming power sources, such as Mains–Generator, Mains–UPS, Generator–Generator, or two utility/incoming feeders. ABB specifies this model with a G3 frame, an IEC current rating of 100 A, a copper conductor range of 2.5–70 mm², and 100 A / 100 A AC-22A / AC-23A ratings at operating voltages below 415 V AC.
