1SAM451000R1019

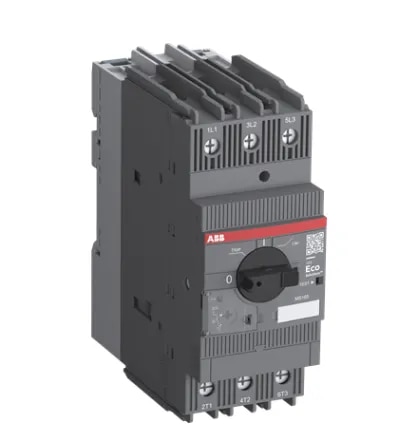

ABB 1SAM451000R1019 MS165-80 is a high-performance manual motor starter / motor protection circuit breaker designed for motors up to 45 kW at 400 V with an adjustable current range of 70–80 A. It provides reliable protection against overload, short circuit and phase failure and features a Class 10 tripping characteristic. The MS165 range includes a built-in disconnect function, temperature compensation, trip-free mechanism, rotary operating handle and separate short-circuit trip indication. Auxiliary contacts, signaling contacts, shunt trips, undervoltage releases and power-feed accessories can also be added.
